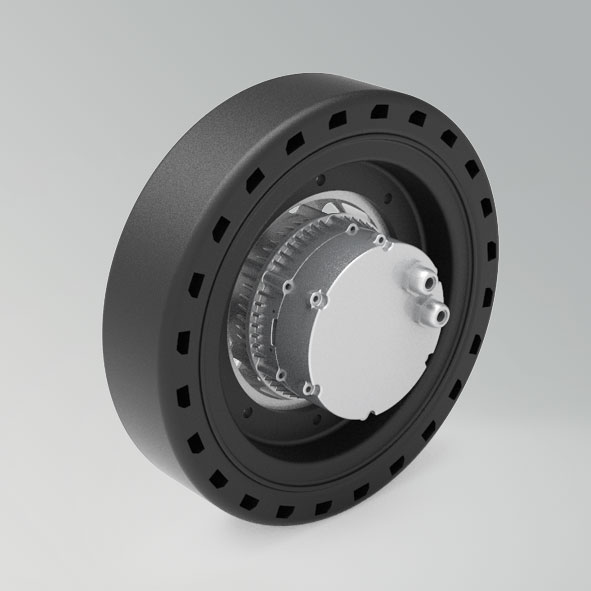

hub motor SETZ90-1DG
Peak torque: 360Nm
Peak speed: 86rpm
Whole machine weight: 1.8kg
| model | Output parameters | reduction ratio | |||||||||||
| Bus voltage（Vdc） | rated power(kW) | peak power(kW) | rated speed(rpm) | Peak speed(rpm) | rated torque(Nm) | Peak torque(Nm) | rated current(Arms) | peak current (Arms) | Size （mm） | weight（kg） | |||
| Advanced Edition | SETZ90-1DA | 48 | 1.25 | 1.05 | 1600 | 2600 | 1.5 | 12 | 7.2 | 75 | 1 | φ99*42 | 1.15 |
| SETZ90-1DB | 320 | 520 | 7.5 | 60 | 5 | 1.3 | |||||||
| SETZ90-1DE | 200 | 325 | 12 | 96 | 8 | φ99*66.5 | 1.5 | ||||||
| SETZ90-1DC | 160 | 260 | 15 | 120 | 10 | ||||||||
| SETZ90-1DD | 100 | 162.5 | 24 | 192 | 16 | ||||||||
| SETZ90-1DF | 89 | 144.5 | 27 | 216 | 18 | φ99*72.5 | 1.6 | ||||||
| SETZ90-1DH | 76 | 123.5 | 31.5 | 252 | 21 | 1.7 | |||||||
| SETZ90-1DG | 53 | 86.5 | 45 | 360 | 30 | 1.8 | |||||||
