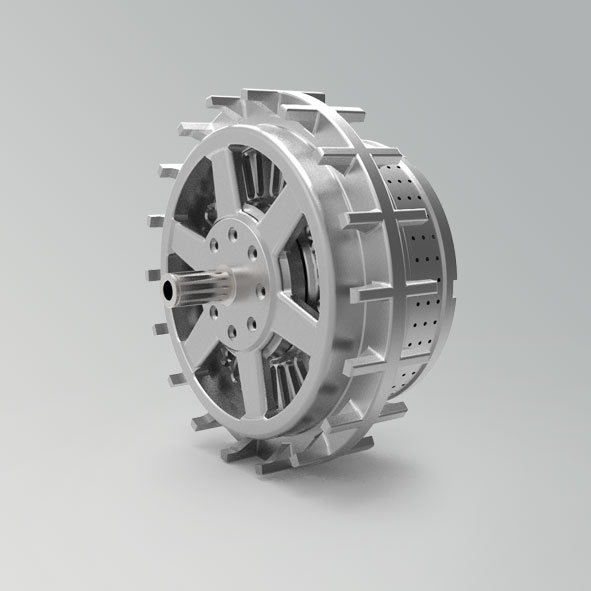

hub motor SETZ220-11BC
Peak torque: 1600Nm
Peak speed: 90rpm
Whole machine weight: 15kg
| model | Output parameters | gear ratio | |||||||||||
| bus voltage（Vdc） | rated power(kW) | peak power(kW) | rated speed(rpm) | peak speed(rpm) | Continuous stalling torque(Nm) | Peak torque(Nm) | Continuous locked rotor current(Arms) | peak current(Arms) | Size （mm） | weight（kg） | |||
| SETZ150-5BB | 48 | 0.7 | 5 | 93.5 | 125 | 72 | 560 | 15 | 150 | 16 | φ165*85 | 4 | |
| SETZ150-5BC | 55.5 | 74 | 121 | 945 | 27 | φ165*95 | 5 | ||||||
| SETZ150-5BD | 50 | 66.5 | 135 | 1050 | 30 | φ165*95 | 5 | ||||||
| SETZ160-4CB | 48 | 1.35 | 4 | 150 | 180 | 90 | 450 | 30 | 180 | 10 | φ180*100 | 6.5 | |
| SETZ220-11BB | 96 | 1.55 | 11 | 66.5 | 120 | 225 | 1350 | 30 | 160 | 15 | φ220*125 | 11.5 | |
| SETZ220-11BC | 50 | 90 | 300 | 1800 | 20 | φ220*135 | 15 | ||||||
