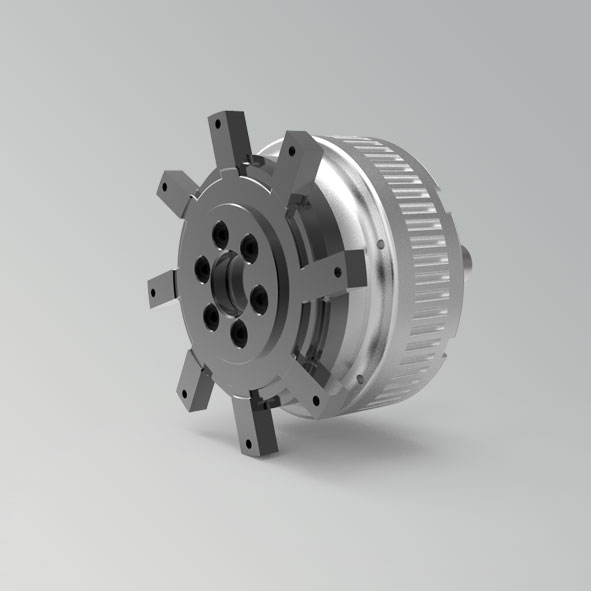

hub motor SETZ120-1OD
Peak torque: 1540Nm
Peak speed: 30rpm
Whole machine weight: 4.7kg
| model | Output parameters | Reduction ratio | |||||||||||
| bus voltage（Vdc） | rated power(kW) | peak power(kW) | rated speed(rpm) | Peak speed(rpm) | rated torque(Nm) | Peak torque(Nm) | rated current(Arms) | peak current(Arms) | size（mm） | weight（kg） | |||
| SETZ120-1BC | 48 | 0.4 | 1.15 | 125 | 187.5 | 20 | 172 | 7.3 | 65 | 8 | 1.8 | ||
| SETZ120-1BD | 0.6 | 2 | 193.5 | 275 | 176 | 40 | 100 | ||||||
| SETZ120-1CC | 0.4 | 1.15 | 100 | 150 | 25 | 215 | 7.3 | 65 | 10 | φ128*76 | 2.3 | ||
| SETZ120-1CD | 0.6 | 2 | 155 | 220 | 220 | 10 | 100 | ||||||
| SETZ120-1DC | 0.4 | 1.15 | 62.5 | 93.5 | 40 | 344 | 7.3 | 65 | 16 | ||||
| SETZ120-1DD | 0.6 | 2 | 96.5 | 137.5 | 352 | 10 | 100 | ||||||
| SETZ120-1RC | 0.4 | 1.15 | 55.5 | 83 | 45 | 387 | 7.3 | 65 | 18 | φ128*81 | 3 | ||
| SETZ120-1RD | 0.6 | 2 | 86 | 122 | 396 | 10 | 100 | ||||||
| SETZ120-1EC | 0.4 | 1.15 | 47.5 | 71.5 | 52.5 | 451.5 | 7.3 | 65 | 21 | ||||
| SETZ120-1ED | 0.6 | 2 | 73.5 | 104.5 | 462 | 10 | 100 | ||||||
| SETZ120-1MC | 0.4 | 1.15 | 38.5 | 57.5 | 65 | 559 | 7.3 | 65 | 26 | ||||
| SETZ120-1MD | 0.6 | 2 | 59.5 | 84.5 | 572 | 10 | 100 | ||||||
| SETZ120-1NC | 0.4 | 1.15 | 28.5 | 42.5 | 97.5 | 752.5 | 7.3 | 65 | 35 | φ128*86 | 3.5 | ||
| SETZ120-1ND | 0.6 | 2 | 44.5 | 62.5 | 770 | 10 | 100 | ||||||
| SETZ120-1OC | 0.4 | 1.15 | 14 | 21 | 175 | 1505 | 7.3 | 65 | 70 | φ128*116 | 4.7 | ||
| SETZ120-1OD | 0.6 | 2 | 22 | 31 | 1540 | 10 | 100 | ||||||
